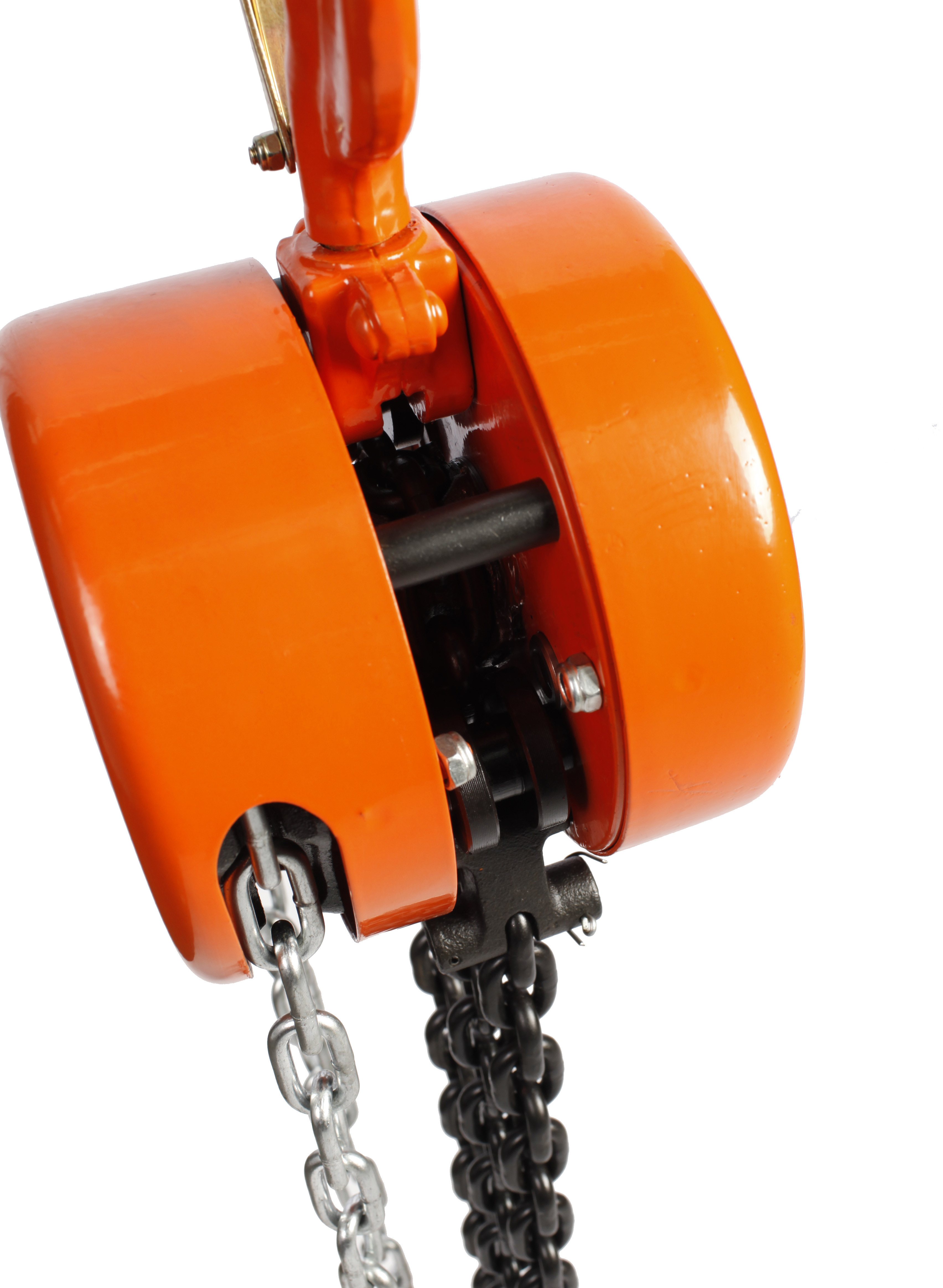

HSZ-Etype Round Chain Block Hoist Manual Chain Hoist Various Color OEM 1 Ton

Product Categories

Changshu Seagull Crane&Hoist Machinery Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: HSZEtype Round Chain Block Hoist Manual Chain Hoist Various Color OEM 1 Ton
Brand: SEAGULL
Price: 1 USD

Brand Name : SEAGULL

Model Number : HSZ-E

Certification : CE GS

Place of Origin : China,Jiangsu

MOQ : 100pcs

Price : Negotiable

Delivery Time : 30 days

Packaging Details : High quality double wall carton and steel pallets outside.

Material : Alloy steel

Condition : New

Usage : Construction hoist

Color : Optional

Warranty : 1 year

CAPICITY : 1 ton

chain : G80

Contact Now

HSZ-E series manual chain block chain pulley block 0.5 Ton-30 Ton CE TUV

features:

Capacity from 0.5T to 30T
Have certificate of CE
Got certificate of ISO9001
Automatic double-pawl braking system.
Asbests-free brake discs.
Drop forged hooks and hook holders to ensure superior quallity and safety
More thickness of sheet cover,gear cover and side plates for good quality.
The static test is 4 times of capacity,and running test is 1.5 times of capacity one by one

HSZ-Etype Round Chain Block Hoist Manual Chain Hoist Various Color OEM 1 Ton

technical parameters

HSZ-E CHAIN BLOCKS 0.5Ton-30Ton
Model	HAS-0.5E	HSZ-1E	HSZ-1.5E	HSZ-2E	HSZ-3E	HSZ-5E	HSZ-10E	HSZ-20E	HSZ-30E
Rated load(T)	0.5	1	1.5	2	3	5	10	20	30
Standard lift(m)	2.5	2.5	2.5	2.5	3	3	3	3	3
Test load(T)	0.75	1.5	2.25	3	4.5	7.5	12.5	25	37.5
Efforts required at capacity(N)	262	314	343	318	347	382	390	390	394
Diameter of load chain(mm)	6	6	8	6	8	10	10	10	10
No. of load chains	1	1	1	2	2	2	4	8	10
Dimensions (mm) A B C D	142 126 280 28	142 126 300 32	178 142 360 38	142 126 380 40	178 142 470 44	210 165 600 50	358 165 730 64	580 195 1000 82	688 394 1050 82
Net weight (kg)	9.5	10.5	17.5	14.5	23	35	68	155	233
Extra weight per meter of extra lift(kg)	1.7	1.7	2.4	2.5	3.7	5.3	9.7	19.4	23.9
